Chainless Bearing Type Glass Edging Machine
The machine use chainless bearing transfer system. The machine is heavyduty, mainly process high quality polishing glass.Can design the machine with different motors with or without swing spindles (5or 6 spidnles swing).
The machine use chainless bearing transfer system. The machine is heavyduty, mainly process high quality polishing glass.Can design the machine with different motors with or without swing spindles (5or 6 spidnles swing).
Main Technical Specification
| Model | EM-8B | EM-9B | EM-10B | EM-9-45(5)B | EM-10-45B |
| UNIT (pc) | |||||
| Total Nr.ofSpindle | 8 | 9 | 10 | 9 | 10 |

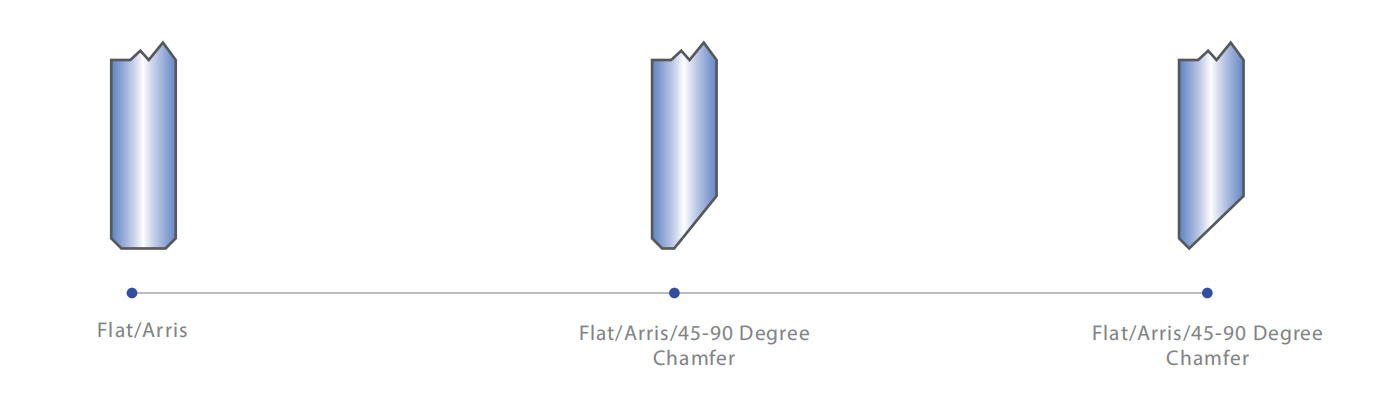

| Profile | Flat/Arris | Flat/Arris | Flat/Arris | Flat/Arris/45-90 Degree Chamfer |
Flat/Arris/45-90 Degree Chamfer |
| (mm) | |||||
| MIN.Glass | 30*100 | 30*100 | 30*100 | 30*100 | 30*100 |
| (mm) | |||||
| Glass Thickness | 3-25 | 3-25 | 3-25 | 3-25 | 3-25 |
| UNIT (KW) | |||||
| Power | 15.5 | 18 | 20 | 18.5 | 20 |
| UNIT (m/min) | |||||
| Glass Speed | 0.8-6 | 0.8-6 | 0.8-6 | 0.8-6 | 0.8-6 |
| UNIT (m) | |||||
| OuterDimension | 6.9*1.0*2.6 | 6.9*1.0*2.6 | 7.5*1.0*2.6 | 6.8*1.0*2.6 | 7.5*1.0*2.6 |
| UNIT (kg) | |||||
| Weight | 3000 | 3500 | 3800 | 3800 | 4000 |
