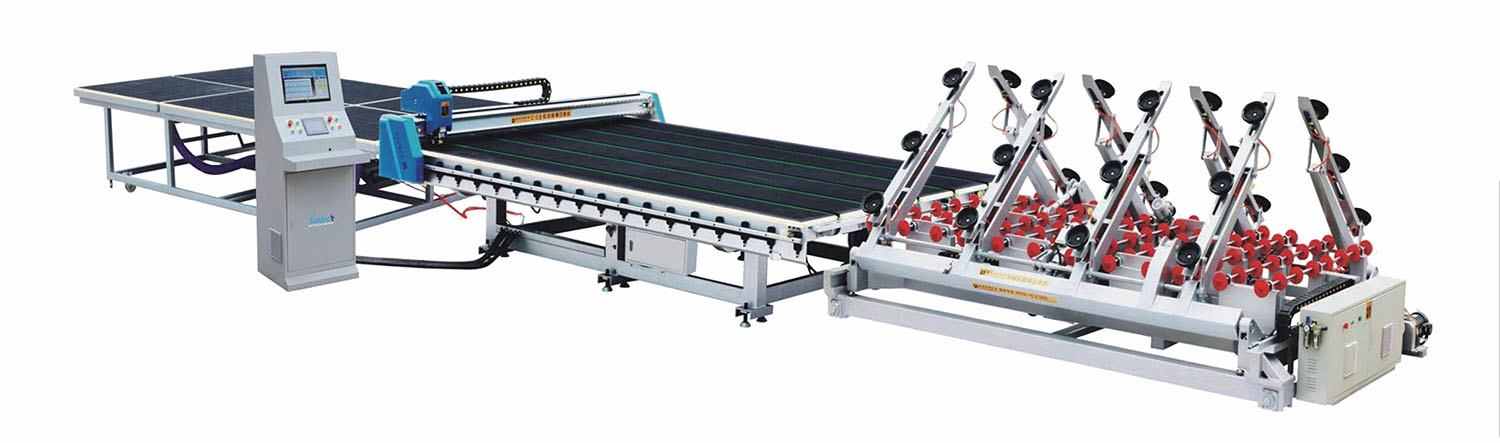

CNC Glass Cutting Line
· With advance control system,laser position location, the machine can sense the glass location in shortime, glass can be displaced at any position.lt adopts double servo motors drive with high speed, high accu.racy, Cutting force linear adjustable. The whole machine is stable and reliable.
· With advance control system,laser position location, the machine can sense the glass location in shortime, glass can be displaced at any position.lt adopts double servo motors drive with high speed, high accu.racy, Cutting force linear adjustable. The whole machine is stable and reliable.
| Model | CT-4228 | CT-5133 | CT-6133 |
| UNIT (mm) | |||
| Cutting Precision | ±0.3 | ±0.3 | ±0.3 |
| Max.Cutting Size | 4200*2800 | 5100*3300 | 6100*3300 |
| Min.Cutting Size | 100*100 | 100*100 | 100*100 |
| Table Height | 900±25 | 900±25 | 900±25 |
| Glass Thickness | 3~19 | 3~19 | 3~19 |
| Dimension | 13390*5300*1500 | 16700*5300*1500 | 19415*5300*1500 |
| UNIT (mm/s) | |||
| Cutting Speed | Max.120 | Max.120 | Max.120 |
| UNIT (Kg) | |||
| Weight | 8000 | 10000 | 12000 |
